| Cooling System: | Remote Cooling System | Room Panel: | 100mm |
|---|---|---|---|
| Material: | Prepainted Steel | Door: | Sliding Door |
| Thermostat: | Dixell | ||
| Điểm nổi bật: | food storage cold room,restaurant walk in refrigerator |
||
Walk In Freezer Room with Sliding Door and Remote Condensing Unit
Key Features:
⇒ Sizes: Customized
⇒ Temperature: +10 ~ -40 ℃ Customized
⇒ Voltage/Frequency: 220V/50Hz, 220V/60Hz, 380V/50Hz, 415V/50Hz
⇒ Room Panels Thickness: 70mm, 100mm, 150mm, 200mm, depends on the room temperature
⇒ Room Panels Material: Prepainted Steel, Stainless Steel 304, 0.5mm thick
⇒ Door: Hinged Door, Sliding Door
⇒ Door Hole Size: Customized
⇒ Condensing Unit: Monoblock or Remote
⇒ Compressor: Tecumseh (monoblock), Copeland,
⇒ Optional Parts:
► Anti-slip aluminum or stainless steel floor
► Inside LED lamp
► Door Ramp
► Storage Shelf (stainless steel shelf, metal rack)
Standard Sizes Modular Walk-in Cooler & Freezer:
| Model | Dimensions (MM) | Temerature Range (℃) | Volume (M3) | Door Hole Size (MM) |
| CR2224C/F | 2120*1920*2400 | -5~+10 / 0~-40 | 7.4 | 720*1900 |
| CR2324C/F | 2120*2880*2400 | -5~+10 / 0~-40 | 11.4 | 720*1900 |
| CR2424C/F | 2120*3840*2400 | -5~+10 / 0~-40 | 15.4 | 720*1900 |
| CR3324C/F | 3080*2880*2400 | -5~+10 / 0~-40 | 17.1 | 720*1900 |
| CR3424C/F | 3080*3840*2400 | -5~+10 / 0~-40 | 23.1 | 720*1900 |
| CR4424C/F | 4040*3840*2400 | -5~+10 / 0~-40 | 30.1 | 720*1900 |
Introduction:
Our modular cold room series is an integrated family of sandwich panels designed for quick cold room
assembly. The panel configuration has been reduced to a minimum, so the overall effect is to offer the
clients maximum design possibilities for cold rooms with a minimum amount of panels required on the
site. All products from the modular range can be easily assembled without the need for special tools.
Likewise they can be dismantled easily in order to move or enlarge them. The modular range has a wide
variety of applications from general food storage to mortuary chambers.
The Cold Room Sandwich panels compris of two steel skins that are injected with a high pressure
polyurethane foam, with tongue and groove jointing method.
Detailed Photos:
Sliding Door Bottom Channel

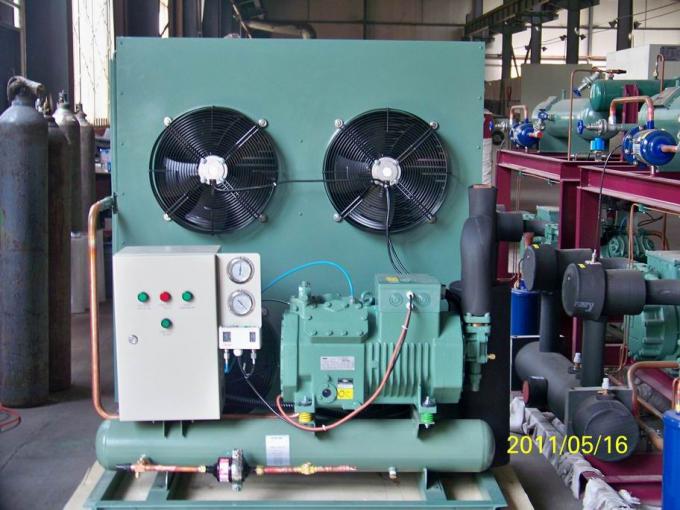

Air Cooled Condensing Unit
